Tern Vektron S10

Tern

$ 3,299.00 $ 3,699.00

In store only.
Local pickup, use Florida3 discount at checkout
for even more savings.

Vektron S10 - The Accelerator
All around the world, the way we get from A to B is changing. With the world on the cusp of auto-mobility, ride sharing, and the mainstream arrival of electric vehicles, it’s an exciting moment for transportation. The Tern Vektron takes everything great about folding bikes—multi-modal commuting, portability for travel and storage—and accelerates it.

  • New colors and updated styling
  • Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
  • Updated frame with a reclining battery for a lower center of gravity and better ride
  • Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
  • Integrated Atlas V Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
  • Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
  • Fits easily on buses, subways and taxis for electric multi-modal commuting
GENERAL INFO
Wheel Size:  20 inch wheels
Speeds:  1x10
Weight:  22.1 kg (48.7 lb)
Folding Time:  10 sec
Folding Size:  41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
Frame Sizes:  One size
Gear Inches:  30" - 97" (2.36 - 7.72 m)
Distance: Seatpost to Handlebar:  Min: 620 mm (24.4") Max: 690 mm (27.2")
Distance: Saddle to Pedal:  Min: 670 mm (26.4") Max: 1100 mm (43.3")
Suggested Rider Height:  147 - 195 cm (4'10" - 6'5")
Max Rider Weight:  105 kg (231.5 lb)
Max Gross Vehicle Weight:  125 kg (275.6 lb)
FRAME
Frame:  Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork:  Tern Tarsus, 6061-AL, hydroformed
COCKPIT
Handlepost:  Tern Physis 3D (G2), 3D forged, 5 patented technologies
Stem:  Tern Andros (G2), adjustable, forged construction, patented technology
Headset:  Flux Pro, Angular Contact cartridge bearings, Physis integrated
Handlebar:  Kinetix Comp, double-butted 6061-Al, Tern Andros Adapted
Grip/Bars Tape:  Ergon

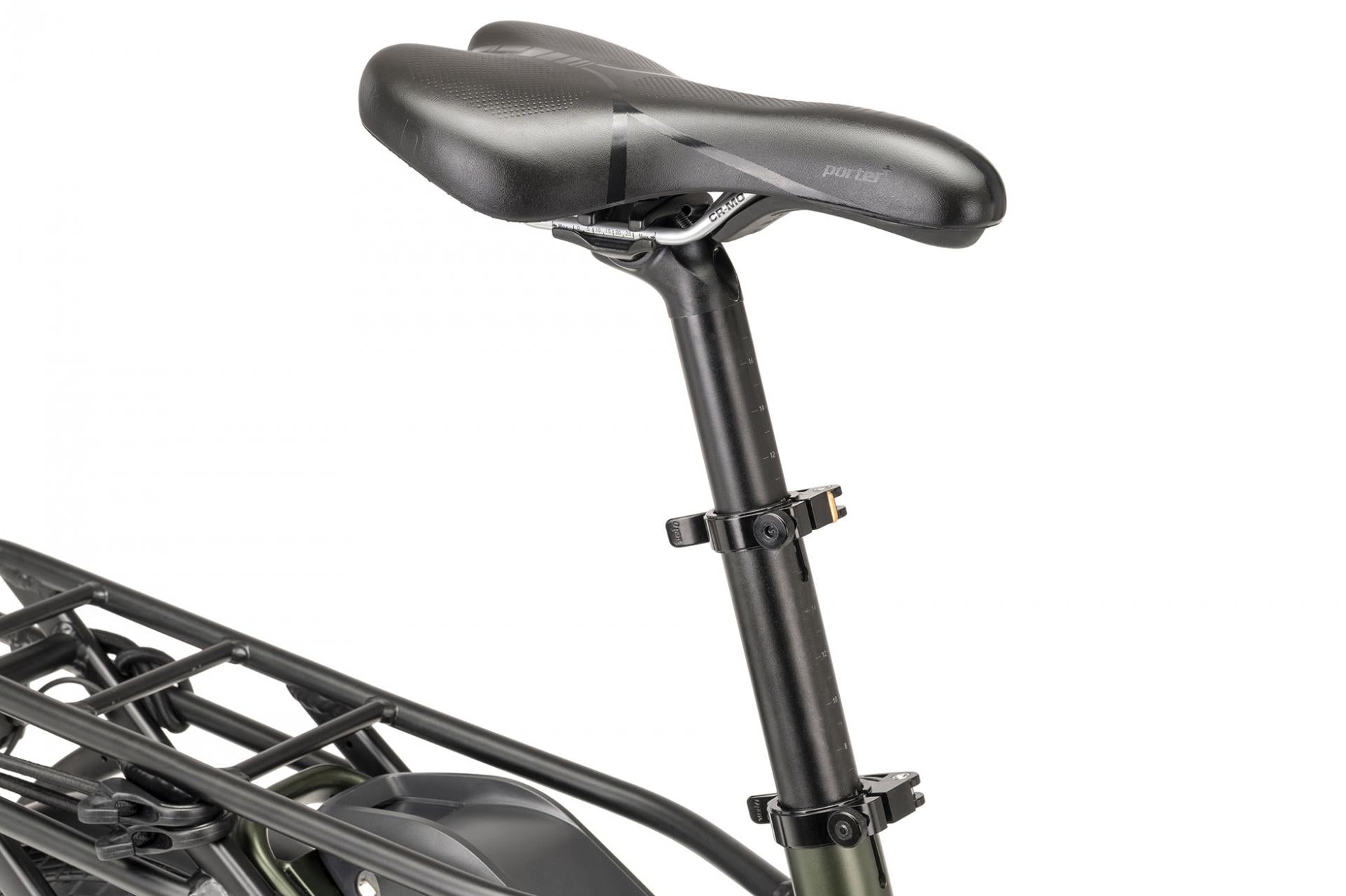

Saddle:  Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:  Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:  Tern Collar, 6061-AL, 2pc
BRAKES
Front Brake:  Magura MT4, hydraulic disc
Rear Brake:  Magura MT4, hydraulic disc
Brake Levers:  Magura, hydraulic disc
Brake Cable & Housing:  Magura, hydraulic disc
WHEELS
Front Hub:  Novatec, sealed cartridge bearing, disc
Rear Hub:  Novatec, sealed cartridge bearing, disc
Spokes and Nipples:  Double-butted stainless
Rims:  Kinetix Comp for disc
Tires:  Schwalbe Big Apple 55-406, puncture protection, Reflex
TRANSMISSION
Shifter(s):  Shimano Deore, 1x10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset:  Vektron custom, forged 6061-AL crankarm
Cassette/Freewheel:  Shimano 11-36T, 10 spd
Bottom Bracket:  Motor integrated
Chain:  10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:  MKS EZY
E-SYSTEM
Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:  Bosch Powerpack 400 Wh
Display:  Bosch Purion, 4 mode selectable, walk assist
Range:  400 Wh: 53 -106 km (34-68 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
EXTRAS
Bell:  Aluminum
Chainguard: SKS Chainblade
Kickstand:  URSUS MOOI, rear mount
Clip System:  Magnetix 2.0
Luggage Socket:  Yes
Front Light: Tern Valo Direct, 190 lumens
Rear Light:  Herrmans H-Trace, for eBike
Fenders:  SKS, stainless hardware
Rack: Atlas V Rack, integrated 8 point mounting



Come in and TAKE A TEST RIDE
