Tern BYB P10

Tern

$ 1,699.00

In-store only

BYB P10 - Bring Your Bike

Small Fold, Slim Fit

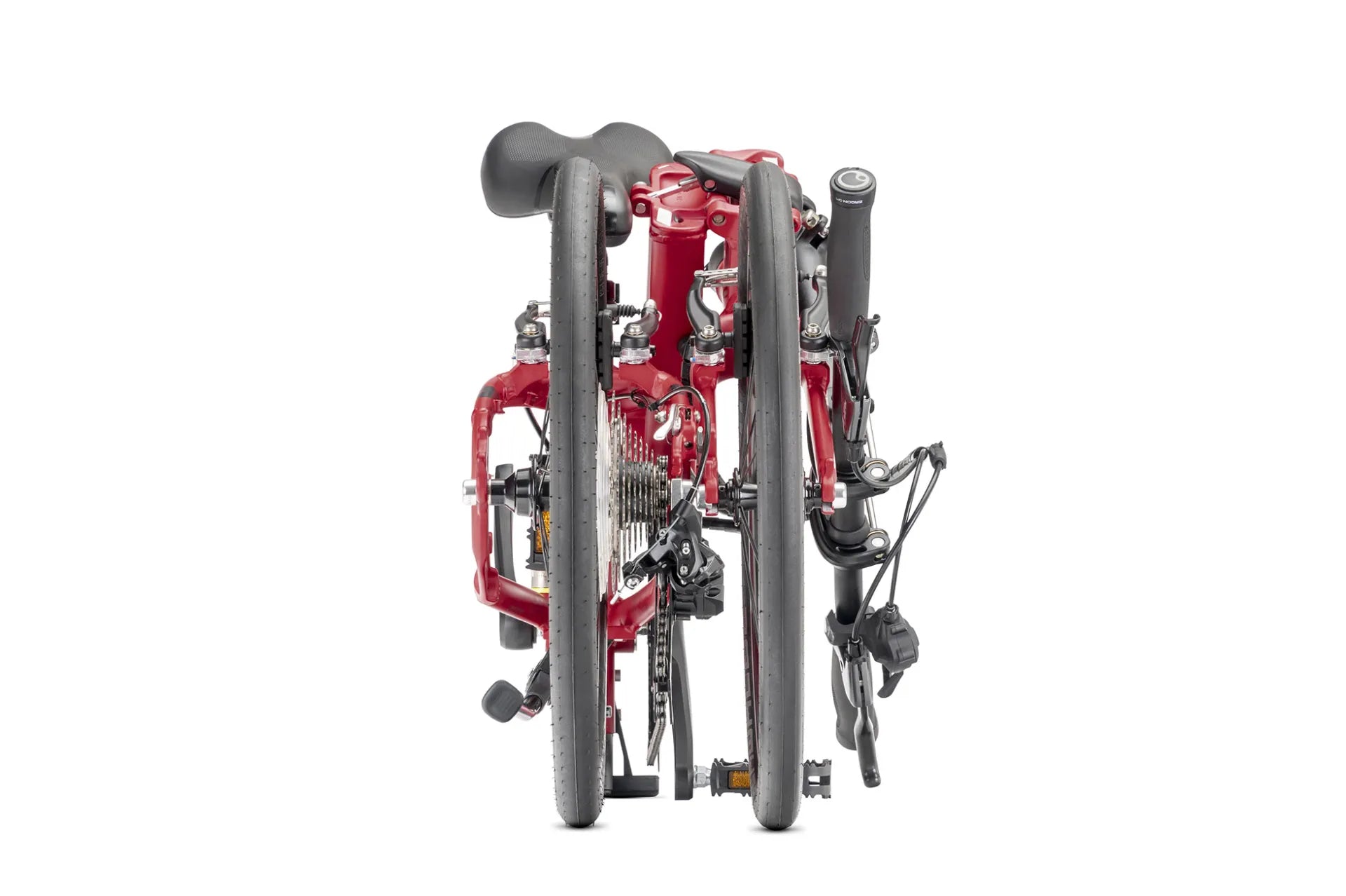

The BYB isn't just a folding bike—it's a whole new way to fold a bike. It's 30% smaller than traditional 20" folding bikes, and folds small and slim enough to fit conveniently into lockers, closets, or any narrow space.

30% smaller than traditional 20” folding bikes
Fits conveniently into lockers, closets, or any narrow space
Fits riders from 147 to 195 cm (4’10” - 6’5”)
TFL Joint with 3D interface, DeadBolt design and SpringLock technology
3D-forged Physis RF Handlepost
Tern Porter+ saddle with patented GripPad design
Kinetix Pro wheels with paired spoke technology

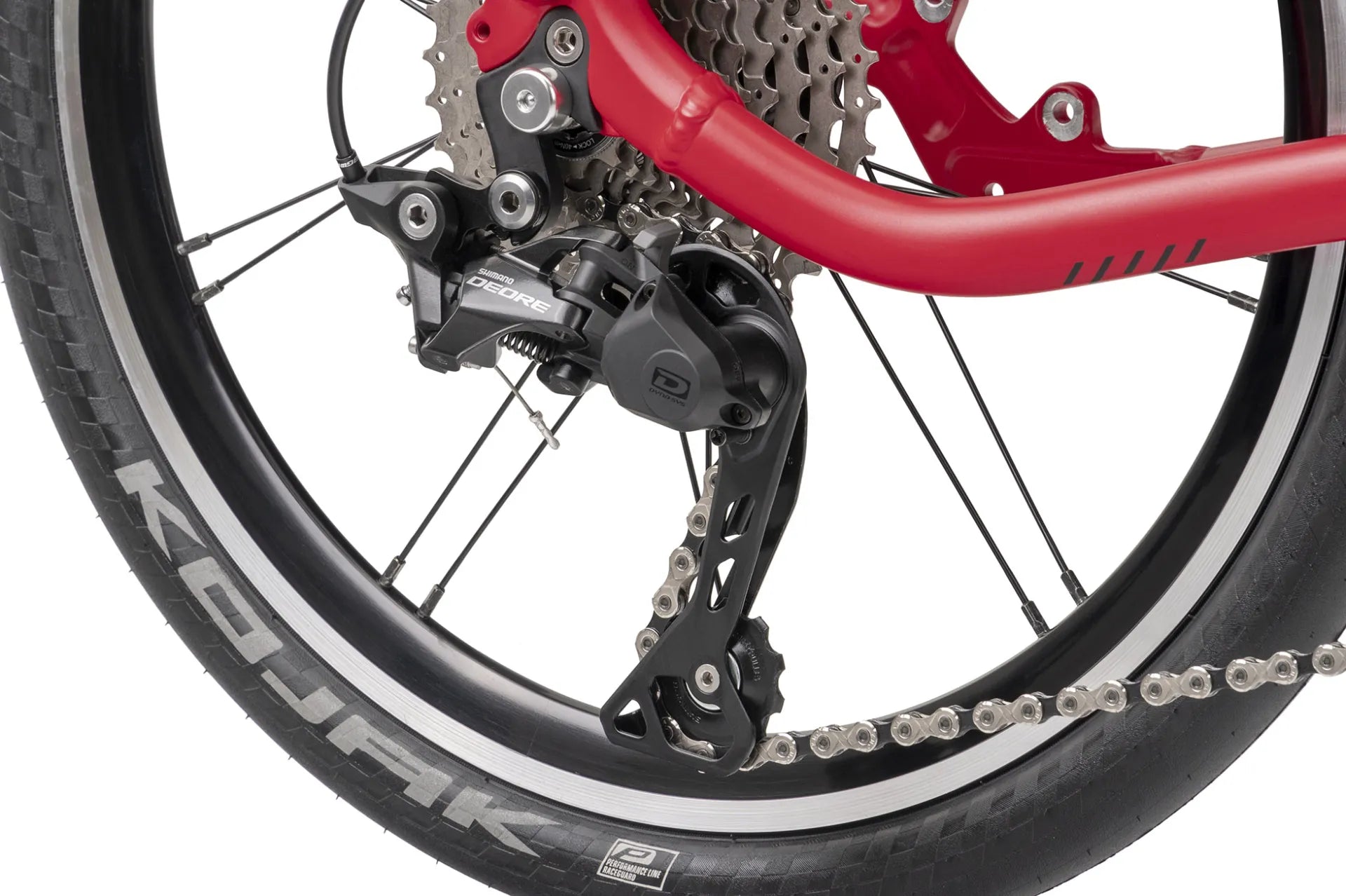

10-speed Shimano Deore, Shadow+ derailleur
Metro Transit Rack* and MTR Fenders for easier commutes, sold separately

* With the Metro Transit Rack, the BYB P10 stands upright when folded.

GENERAL INFO

Wheel Size:	20 inch wheels
Speeds:	1x10
Weight:	12 kg (26.5 lb)
Folding Time:	30 sec
Folding Size:	33 × 81 × 51 cm (13 × 31.9 × 20.1 in)
Frame Sizes:	One size
Gear Inches:	28" - 90" (2.20 - 7.19 m)
Distance: Seatpost to Handlebar:	63 - 67.5 cm (24.8 - 26.6 in)
Suggested Rider Height:	147 - 195 cm (57.9 - 76.8 in)
Max Rider and Load Weight:	105 kg (231.5 lb)

FRAME

Frame:	Tern BYB, 6061-AL, Aluminum, TriFold patented technology, EFBE tested: ISO 4210
Fork:	Tern Tarsus, 6061-AL, hydroformed

COCKPIT

Handlepost:	Tern Physis RF, 3D forged, 5 patented technologies
Stem:	Tern Andros (G2), adjustable, forged construction, patented technology
Headset:	Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:	Flat bar, 6061-AL, Andros adapted
Grip/Bars Tape:	Ergon GP10
Saddle:	Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost:	Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:	Tern Collar

BRAKES

Front Brake:	Kinetix SpeedStop V-brakes, stainless hardware
Rear Brake:	Kinetix SpeedStop V-brakes, stainless hardware
Brake Levers:	Shimano
Brake Cable & Housing:	Jagwire, anti-compression housing, Slick Lube liner

WHEELS

Front Hub:	Kinetix Pro, Paired Spoke technology, 16H
Rear Hub:	Kinetix Pro, Paired Spoke technology, 20H
Tires:	Schwalbe Kojak, Performance Line, 35-406, puncture protection

TRANSMISSION

Shifter(s):	Shimano Deore, 1x10 spd
Rear Derailleur:	Shimano Deore Shadow+
Crankset:	FSA Vero, Built for Tern, 53T
Cassette/Freewheel:	10 spd
Bottom Bracket:	FSA, Cartridge, sealed bearings
Chain:	KMC X10
Pedals:	MKS EZY
Shifter Cable & Housing:	Jagwire LEX-SL, slick treatment, alloy ferrules

EXTRAS

Bell:	Pitch, brass
Kickstand:	Deluxe center mount
Clip System:	Anchor Bolt
Luggage Socket:	Combo Mount
Accessory:	Pedal Holder
