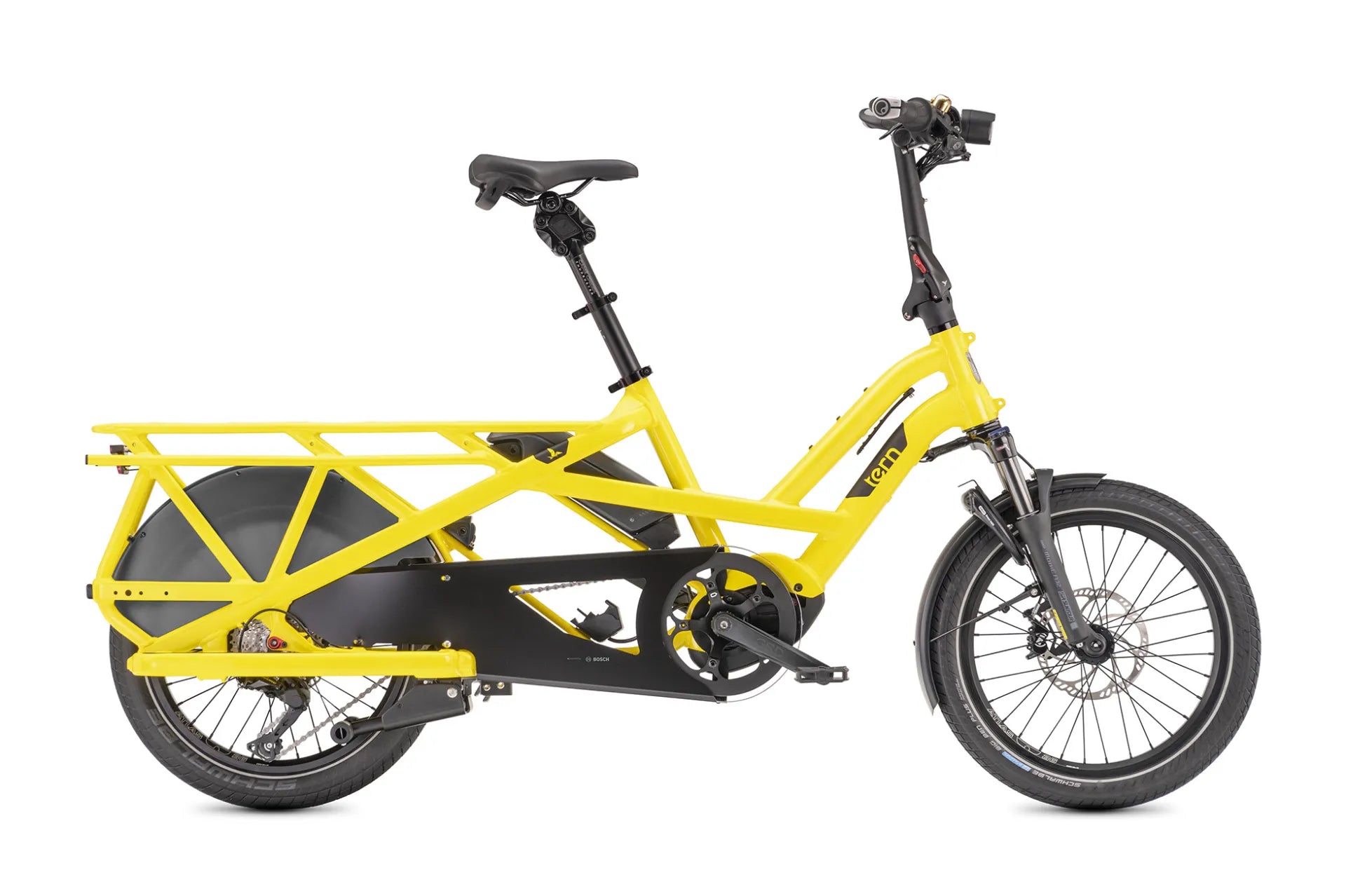

With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.
Tern GSD website
| Wheel Size: | 20 inch wheels |
| Speeds: | 1x10 |
| Weight: | 33.58 kg (74 lb) |
| Folding Time: | 5 sec |
| Flatpack Size: | 176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in) |
| Gear Inches: | 26" - 99" (2.08 - 7.91 m) |
| Distance: Seatpost To Handlebar: | Min: 490 mm (19.3"); Max: 590 mm (23.2") |
| Distance: Saddle To Pedal: | Min: 690 mm (27.2") Max: 1050 mm (41.3") |
| Suggested Rider Height: | 150 - 195 cm (4'11" - 6'5") |
| Max Gross Vehicle Weight: | 200 kg (440.9 lb) |
| Max Rider Weight: | 120 kg (264.6 lb) |
| Frame: | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |

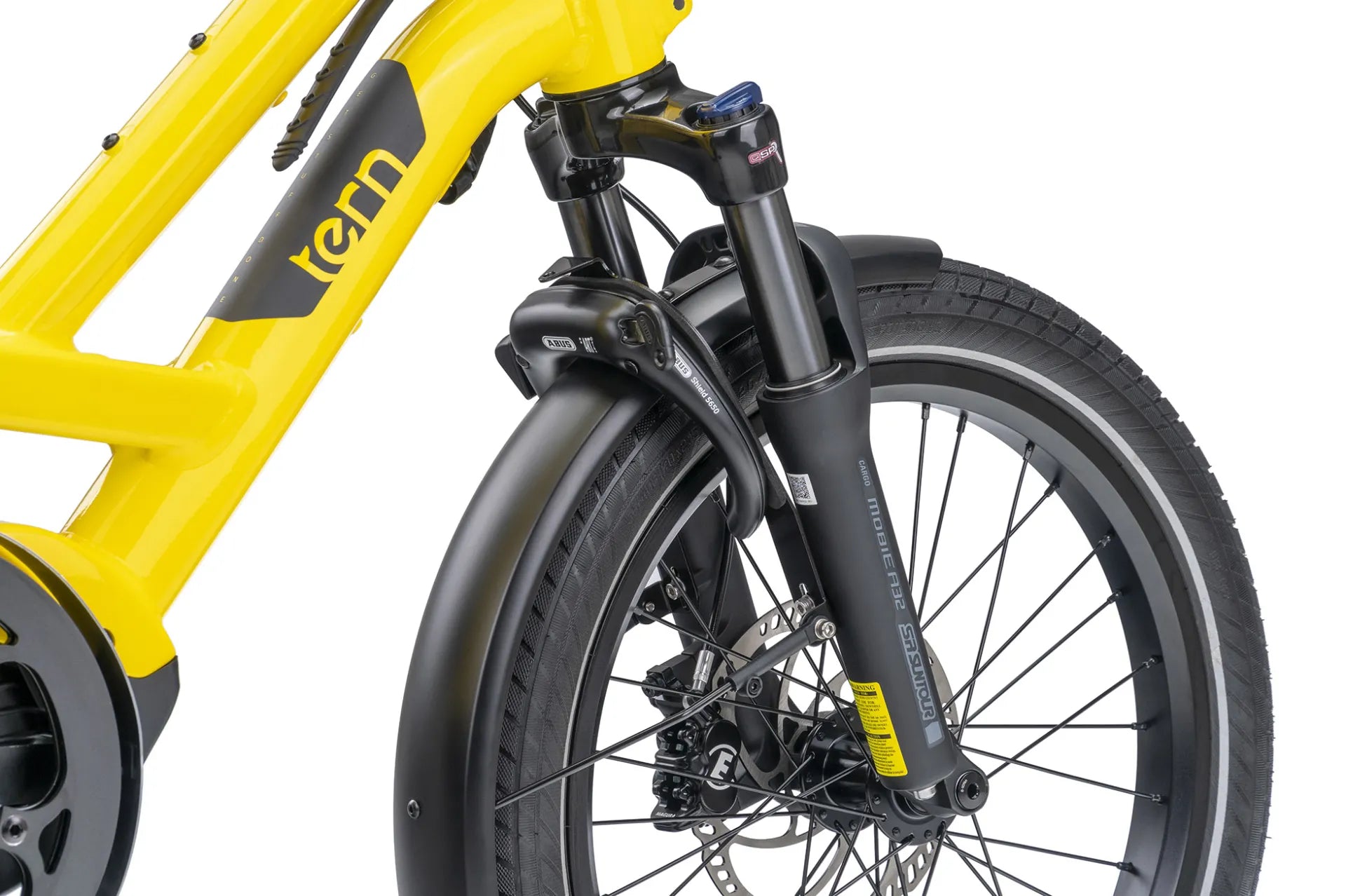

| Fork: | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
| Handlepost: | Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem: | Tern Andros (G2), adjustable, forged construction, patented technology |
| Headset: | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Handlebar: | Tern Sweep, 6061-AL, Tern Andros adapted |
| Grip/Bars Tape: | Ergon, for swept bar |
| Saddle: | Tern GSD by Velo, with rear handle |
| Seatpost: | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |

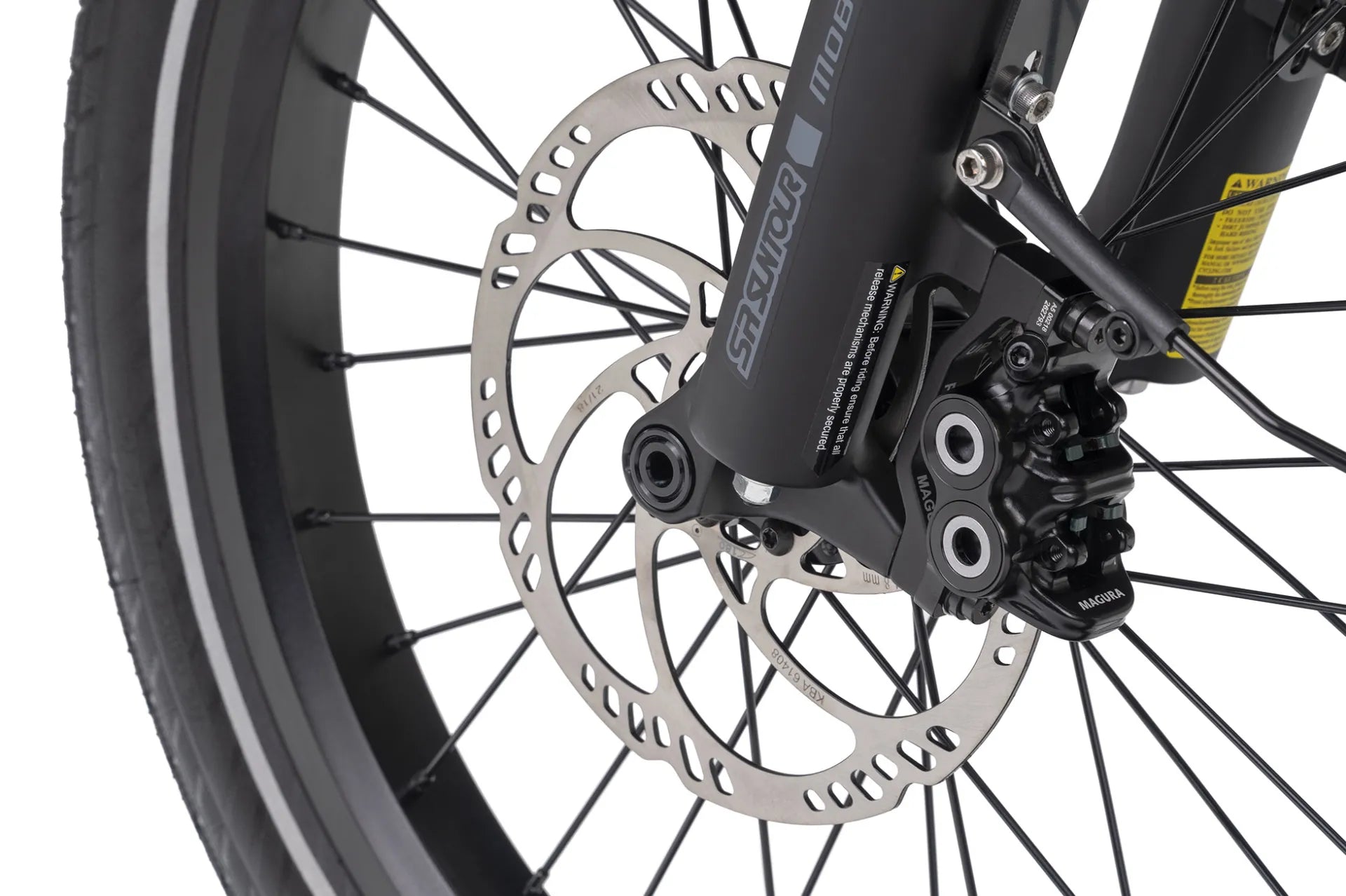

| Front Brake: | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake: | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Brake Levers: | Magura MT5 e-stop, hydraulic, with brake sensor |
| Brake Cable & Housing: | Magura, hydraulic |
| Front Wheel: | Tern Atlas, heavy duty cargo wheel |
| Rear Wheel: | Tern Atlas, heavy duty cargo wheel |
| Front Hub: | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
| Rear Hub: | Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design |
| Spokes and Nipples: | Stainless steel, 13G |
| Rims: | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Tires: | F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Shifter(s): | Shimano Deore, 1 x 10 spd |
| Rear Derailleur: | Shimano Deore Shadow+ |
| Crankset: | Tern GSD custom, forged 6061-AL DH crankarm |
| Cassette/Freewheel: | Shimano 11-36T, 10 spd |
| Bottom Bracket: | Motor integrated |
| Chain: | 10 spd, DHT for eBike, GST corrosion resistant coating |
| Pedals: | Urban with non-slip surface, sealed bearings |
| Shifter Cable & Housing | Jagwire LEX-SL, slick treatment, alloy ferrules |
| Motor: | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery: | Bosch Dual Battery system, 500 Wh/1000 Wh |
| Display: | Bosch Purion |
| Range: | 500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi) |
| Charger: | 220V, 4A (EU); 100-240V, 4A (US) |
| Bell: | Pitch Plus, brass |
| Chainguard: | Tern Custom, full chain cover |
| Kickstand: | Atlas Lockstand, w/ remote unlock, patented technology |
| Luggage Socket: | Combo Mount |
| Front Light: | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light: | RearStop Brake Light, Always on brake light |
| Fenders: | Integrated Wheel Guard, AL6061, w/ Side Skirt |
| Rack: | Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb) |
| ACCESSORY: | ABUS, keyed-alike with Bosch battery |
