Tern HSD P9 Performance

Tern

$ 3,499.00 $ 4,099.00

In-store only

HSD - Enormously Useful. Surprisingly Smaller.

The HSD is mighty but mini: It's easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that's shorter than a standard bicycle.

  • Latest addition to the HSD lineup, the Performance is ideal for tackling hills
  • Powerful Bosch® Performance Line motor for up to 65 Nm of torque
  • 500 Wh battery for a range of up to 118 km (74 mi)
  • Custom Suntour suspension fork
  • 9-speed Shimano® Alivio Shadow derailleur
  • Shimano hydraulic disc brakes
  • Abus® keyed-alike frame lock
  • Fits riders from 150 to 195 cm (4’11” – 6’5”)
  • Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed

Tern HSD website


GENERAL INFO
Wheel Size:  20 inch wheels
Speeds:  1x9
Weight:  25.7 kg (56.7 lb)
Folding Time:  5 sec
Flatpack Size:  163 x 40.5 x 86 cm (64" x 15.9" x 34")
Gear Inches: 33" - 97" (2.65 - 7.72 m)
Distance: Seatpost To Handlebar:  Min: 490 mm (19.3"); Max: 590 mm (23")
Distance: Saddle To Pedal:  Min: 690 mm (27.2") Max: 1050 mm (41.3")
Suggested Rider Height:  150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight:  170 kg (374 lbs)
Max Rider Weight: 120 kg. (264 lbs.)
FRAME
Frame:  Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
Fork:  Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
COCKPIT
Handlepost:  Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:  Tern Andros (G2), adjustable, forged construction, patented technology
Headset:  Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:  Tern Sweep, 6061-AL, Tern Andros adapted
Grip/Bars Tape:  Ergon, for swept bar
Saddle:  Tern Upright by Velo
Seatpost:  Tern Telescope, 34.9/30.9 mm, 2014-AL
BRAKES
Front Brake:  Shimano, hydraulic disc, 180 mm rotor
Rear Brake:  Shimano, hydraulic disc, 160 mm rotor
Brake Levers:  Shimano, hydraulic disc
Brake Cable & Housing:  Shimano, hydraulic disc
WHEELS
Front Wheel:  Tern Atlas H, cargo wheel
Rear Wheel:  Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Shimano disc
Spokes and Nipples:  Stainless steel
Rims:  Tern Atlas H, wide 35 mm
Tires:  Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
Shifter(s):  Shimano Alivio, 1 x 9 spd, trigger

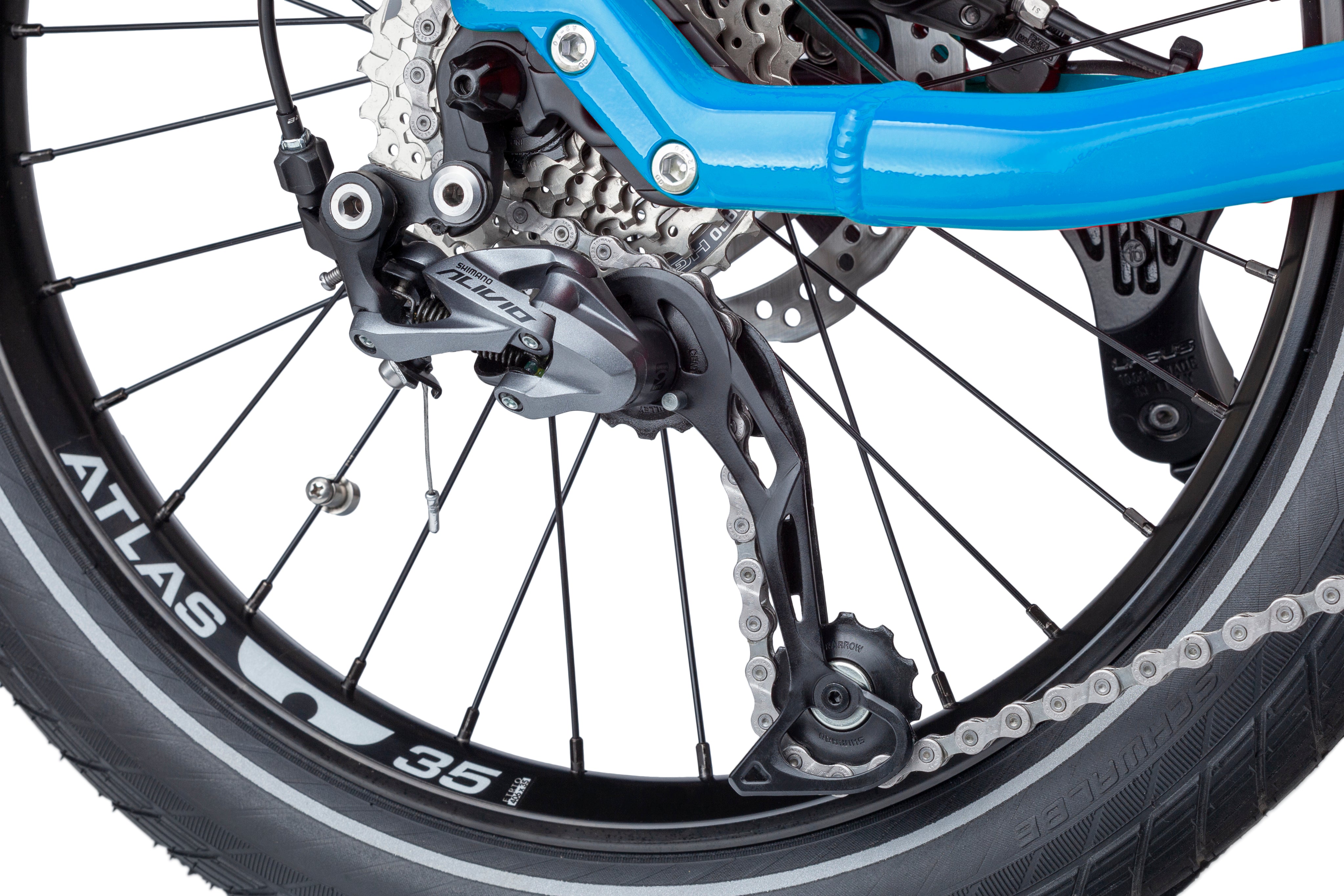

Rear Derailleur: Shimano Alivio Shadow
Crankset:  Tern HSD custom
Cassette/Freewheel:  Shimano 11-32T, 9 spd
Bottom Bracket:  Motor integrated
Chain:  9 spd, DHT for eBike, GST corrosion resistant coating
Pedals:  Urban with non-slip surface
Shifter Cable & Housing Jagwire LEX-SL, slick treatment, alloy ferrules
POWERTRAIN
Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:  Bosch PowerPack 500
Display:  Bosch Purion, 4 mode selectable, walk assist
Range:  500 Wh: 51-118 km (32-74 mi)
EXTRAS
Bell:  Aluminum
Chainguard: SKS Chainblade
Kickstand:  Ursus, rear mount
Luggage Socket:  Combo Mount
Front Light: Tern Valo 2.1, 45 lux/190 lumens
Rear Light:  Herrmans H-Trace, for eBike
Fenders:  SKS, stainless hardware
Rack: Atlas H rack, Atlas Rack Mount, 6 point mounting, 60 kg capacity
ACCESSORY: ABUS, keyed-alike with Bosch battery



Come in and TAKE A TEST RIDE
