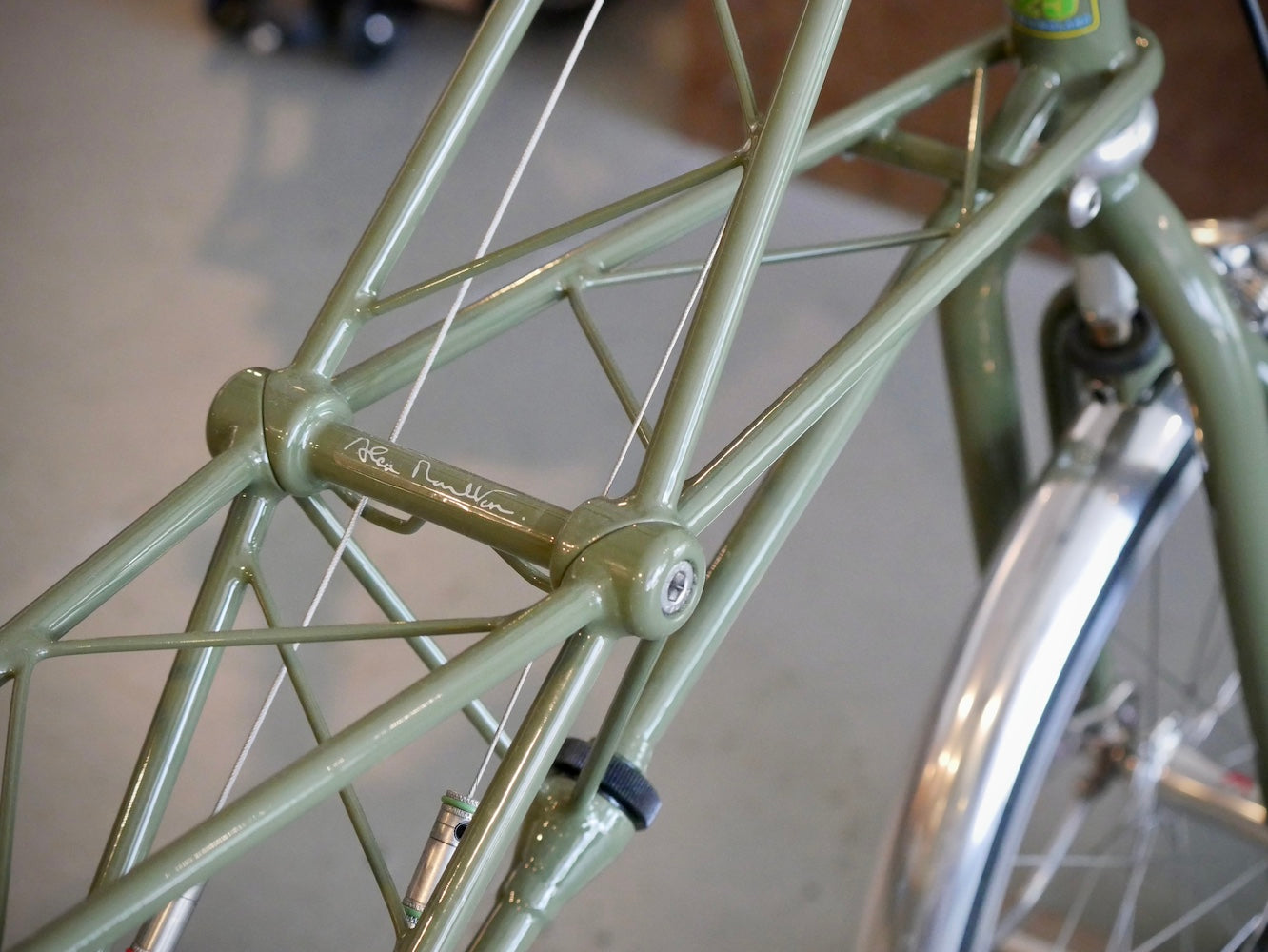

A step on from the TSR, the SST features a new chainstay ‘X-brace’ frame reinforcement, with an adjustable mudguard mount. Frame weight has been reduced with a round-tapered chainstay, lighter rear fork upright tube, and smaller stirrup block height. Another superbly versatile model.
Smooth riding Moulton suspension combined with slick-shifting Alfine 11-speed internal hub gearing. Features narrow high-pressure tyres, a rear disc brake, leather grips and Brooks titanium saddle. Head-turning style and speed in the city.
Wheel Size | 20" |
Frame | Columbus Spirit and Reynolds 525 CrMo steels, with stainless steel dropouts. Hairpin construction. Fillet brazed by hand [sizing]. |

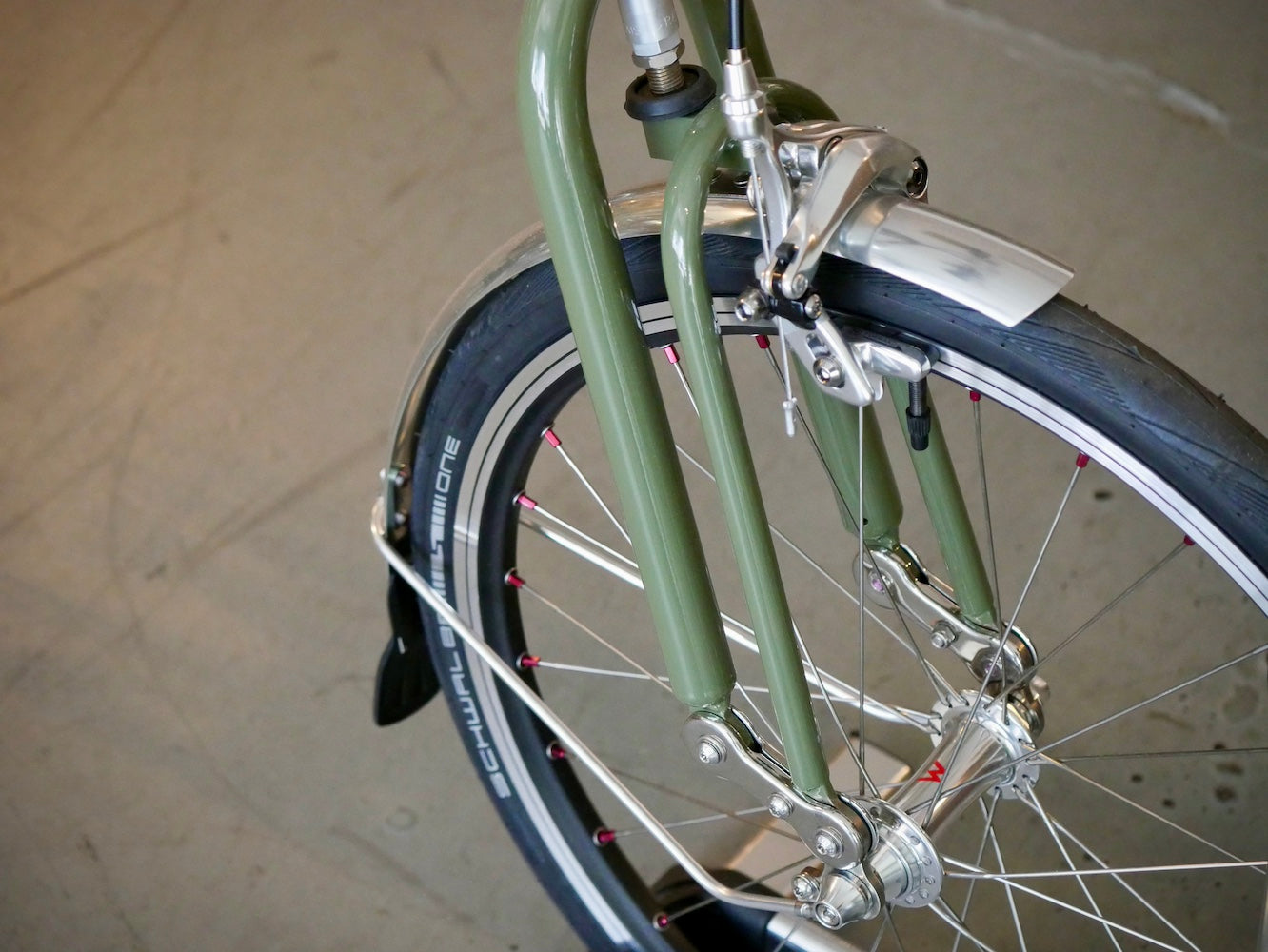

Front Suspension | Moulton Leading Link |
Rear Suspension | Moulton Monosphere |
Separability | Separates into two halves via removal of a centre "kingpin" |
Frame Finish | Powdercoat |
Gears | 11 |
Spec | Shimano Alfine |
Gear Type | Hub |

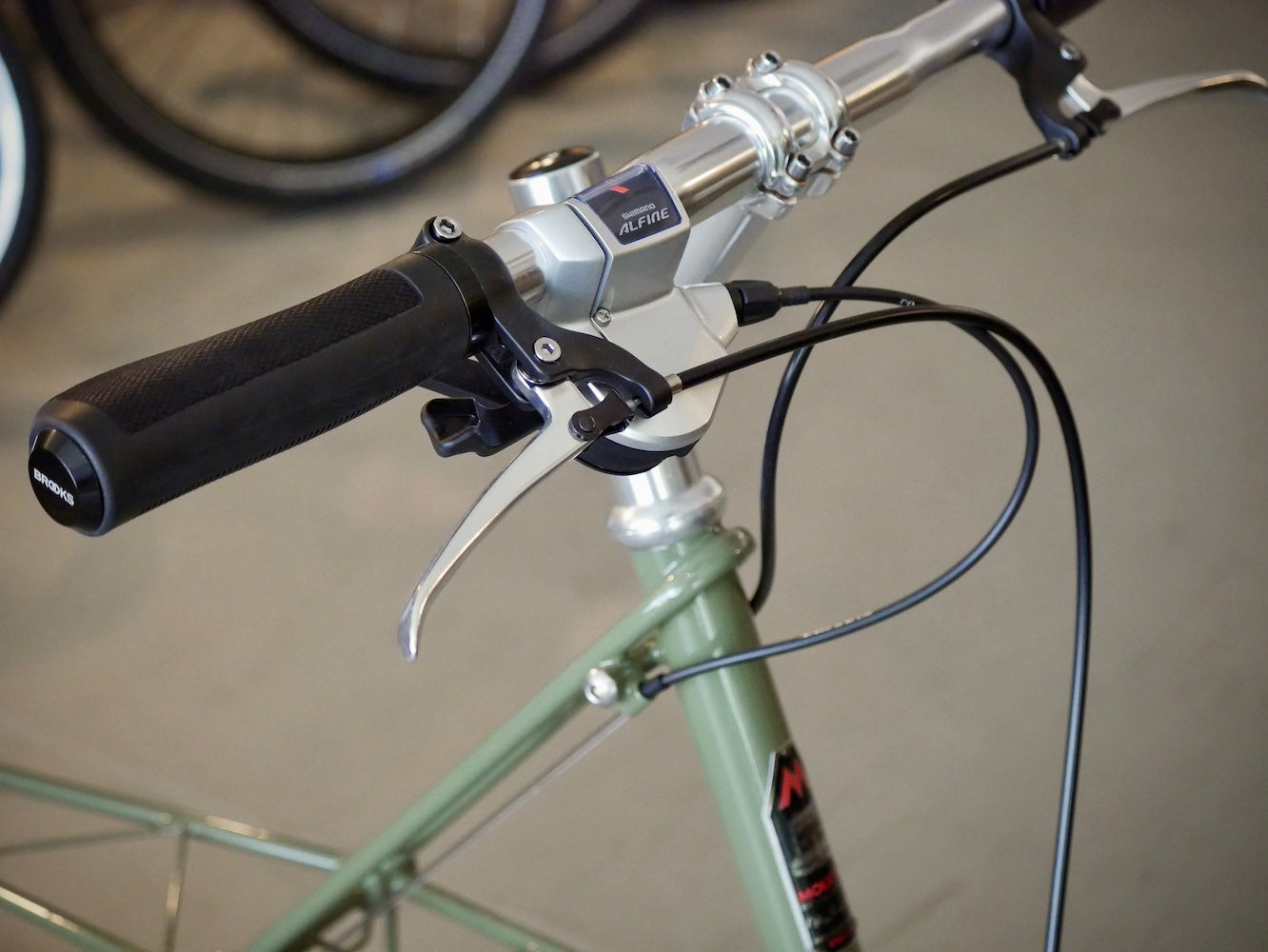

Handlebar | Flat: M special flat bar |
Handlebar Stem | AL ahead stem 110mm |
Handlebar Tape | Brooks Ergonomic Rubber Grips |
Headset | Tange Seiki RDC 1" sealed |
Seatpost | 31.6 forged Aluminium, layback head |

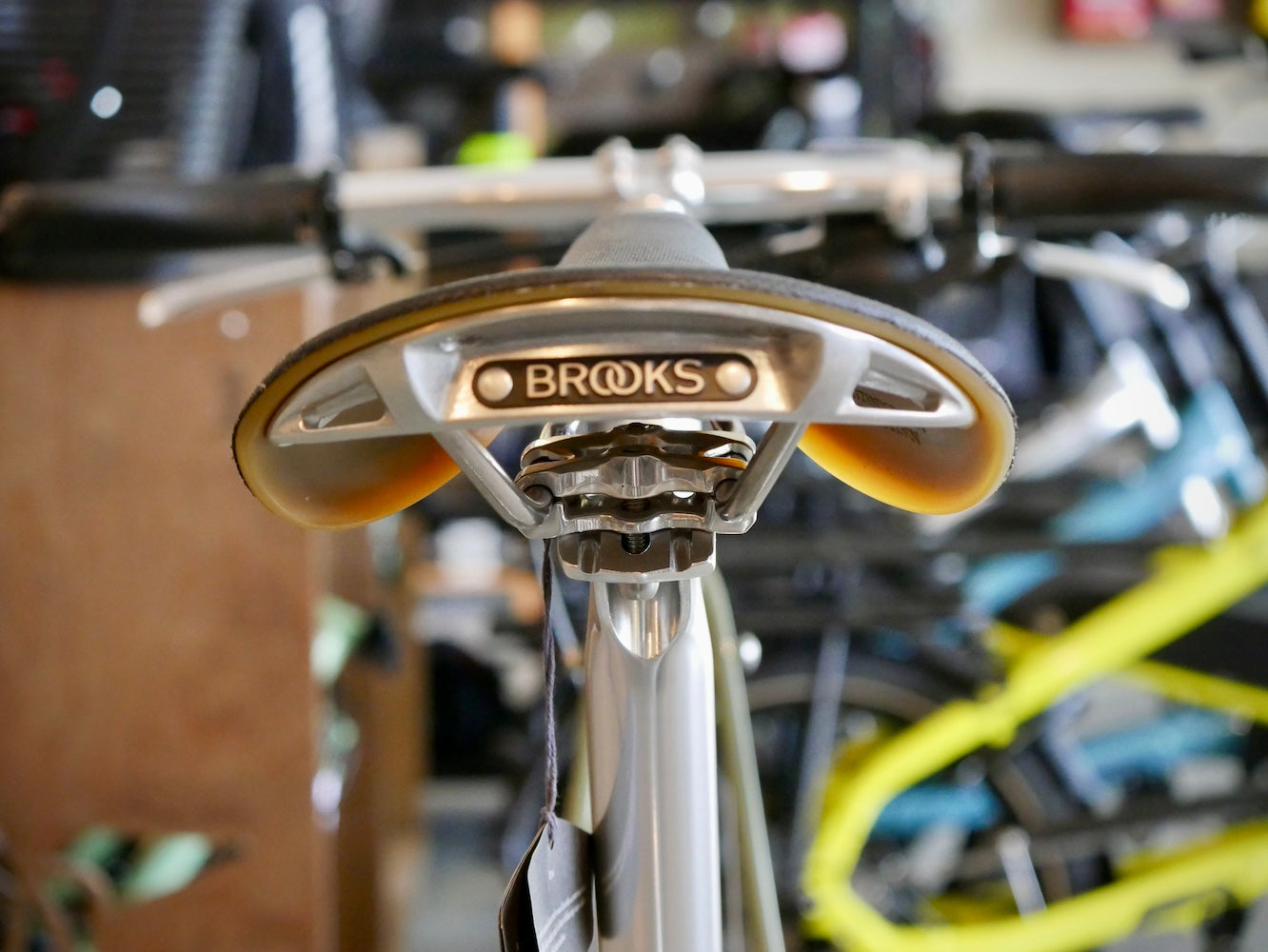

Saddle | Brooks C17 Cambium |
Brake Levers | Tektro FL750 |
Gear Levers | Shimano Alfine rapidfire |
Brakes | 57 calliper front / TRP Spyre disc rear |
Front Mech | N/A |
Rear Mech | N/A |
Crankset | Shimano Alfine rapidfire |
Bottom Bracket | Shimano Hollowtech II |
Cassette/Sprocket | 17T |
Chain | Connex 1/2 x 3/32" stainless |
Pedals | MKS Esprit EZ Superior |
Front hub | Moulton custom forged 28h silver |

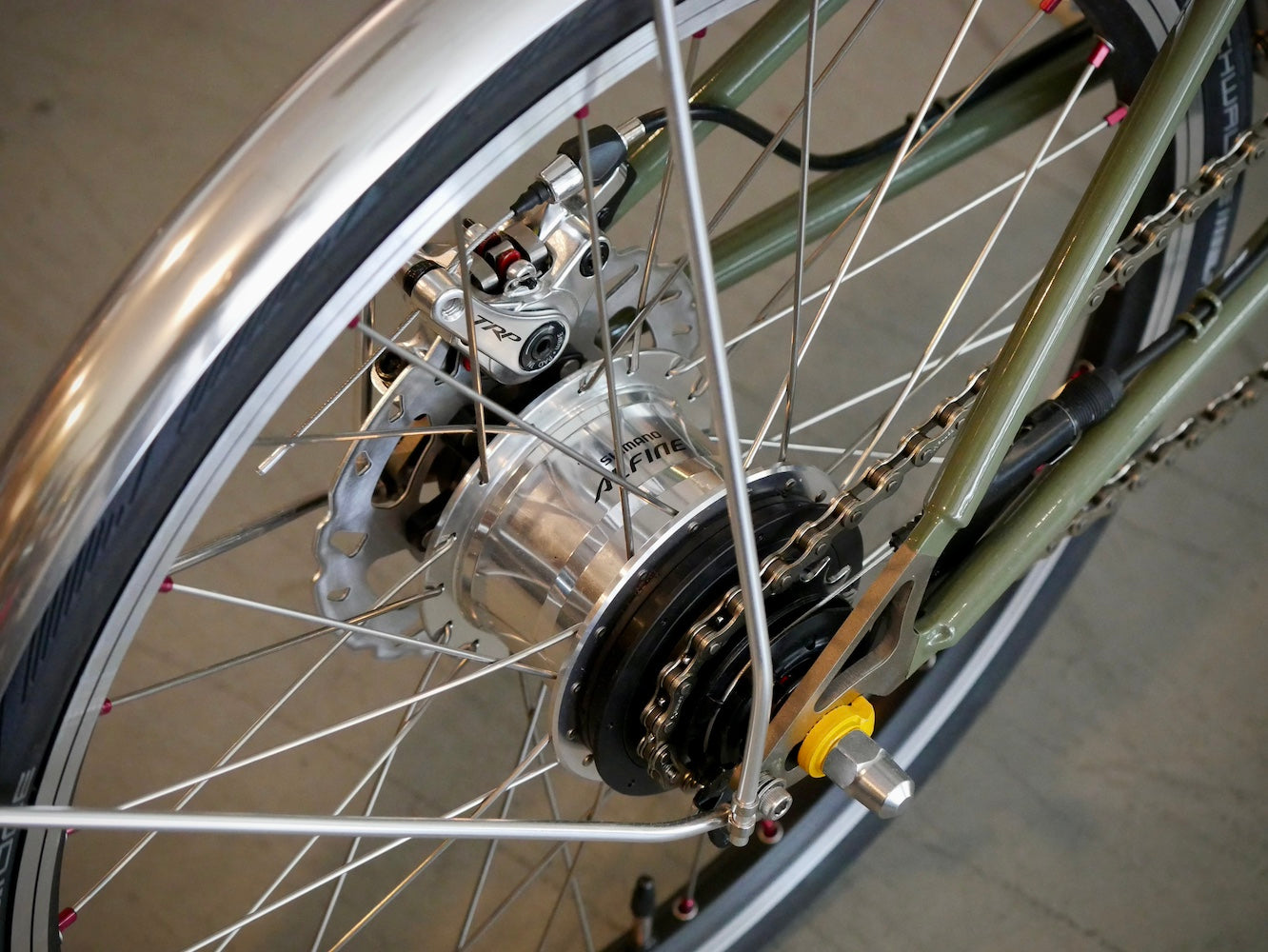

Rear hub | Shimano Alfine 11 speed 32h silver |
Spokes | Sapim Laser butted front/PG rear |
Rims | Moulton MT20, Black, CNC brake track |
Tyres | Schwalbe One 28-406 (Kevlar band) |
Mudguards | Supplied |
Mudguard Clearance | Up to 32mm tyre section |
Gear Range (inches) |
26-106" (45/17) |
Weight | 27.5lbs |
