Tern Vektron P5i

$ 4,099.00

Not Currently In The Showroom

Vektron P5i - RIDE IT, FOLD IT, GO FURTHER

Powerful Bosch Performance motor provides up to 65 Nm of torque and 300% support
Intuitive, easy-to-read Intuvia display keeps you informed and in control on the road
PowerPack 400Wh battery lets you ride up to 112 km (70 mi) on a single charge
Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter offers smooth, effortless shifting across changing terrain

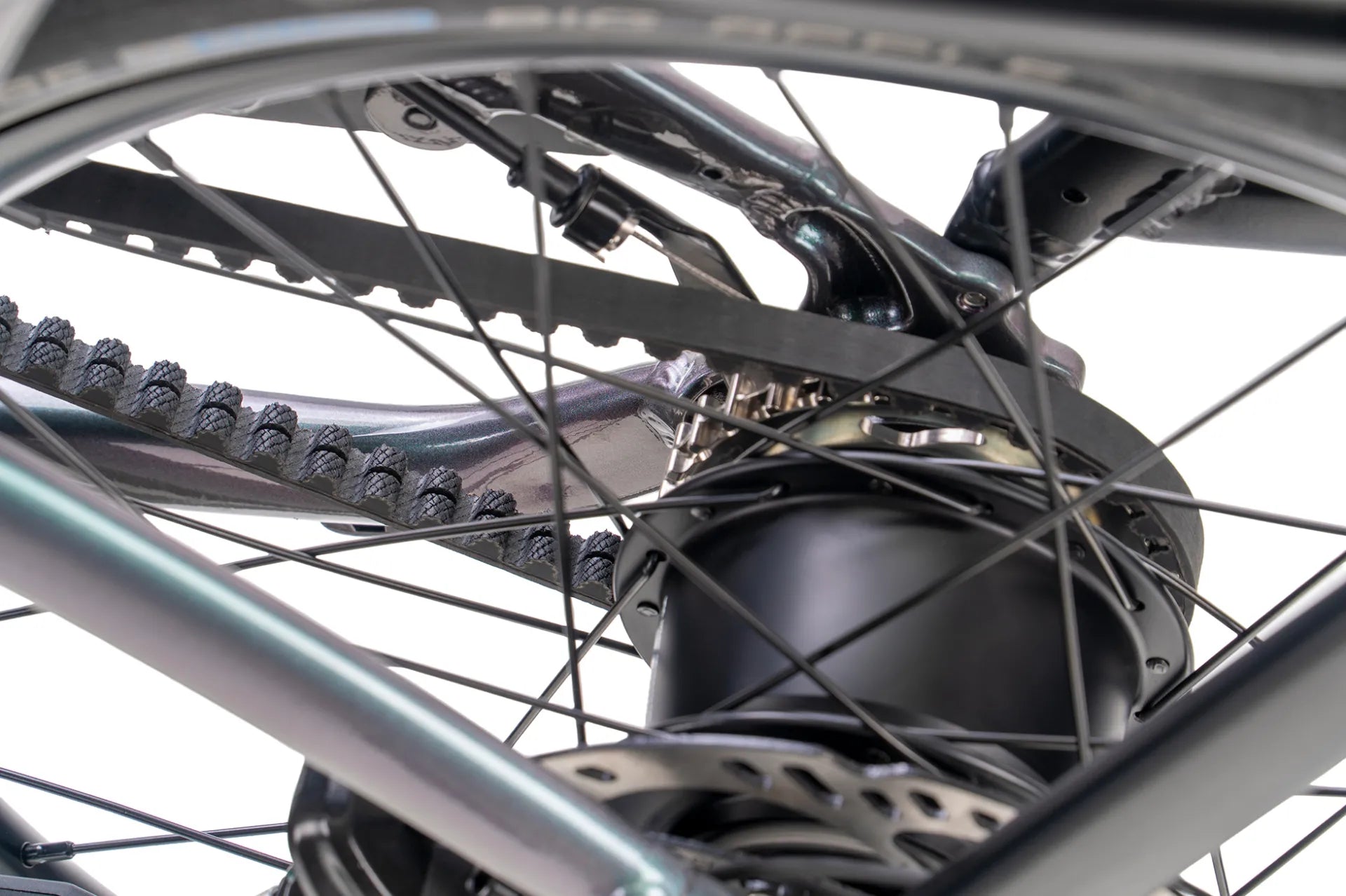

Silent, grease-free, and low-maintenance Gates Belt Drive
ABUS frame lock, conveniently keyed alike with the battery

Best-in-class Bosch drivetrain ensures efficient, comfortable, and natural-feeling pedal assist
Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes

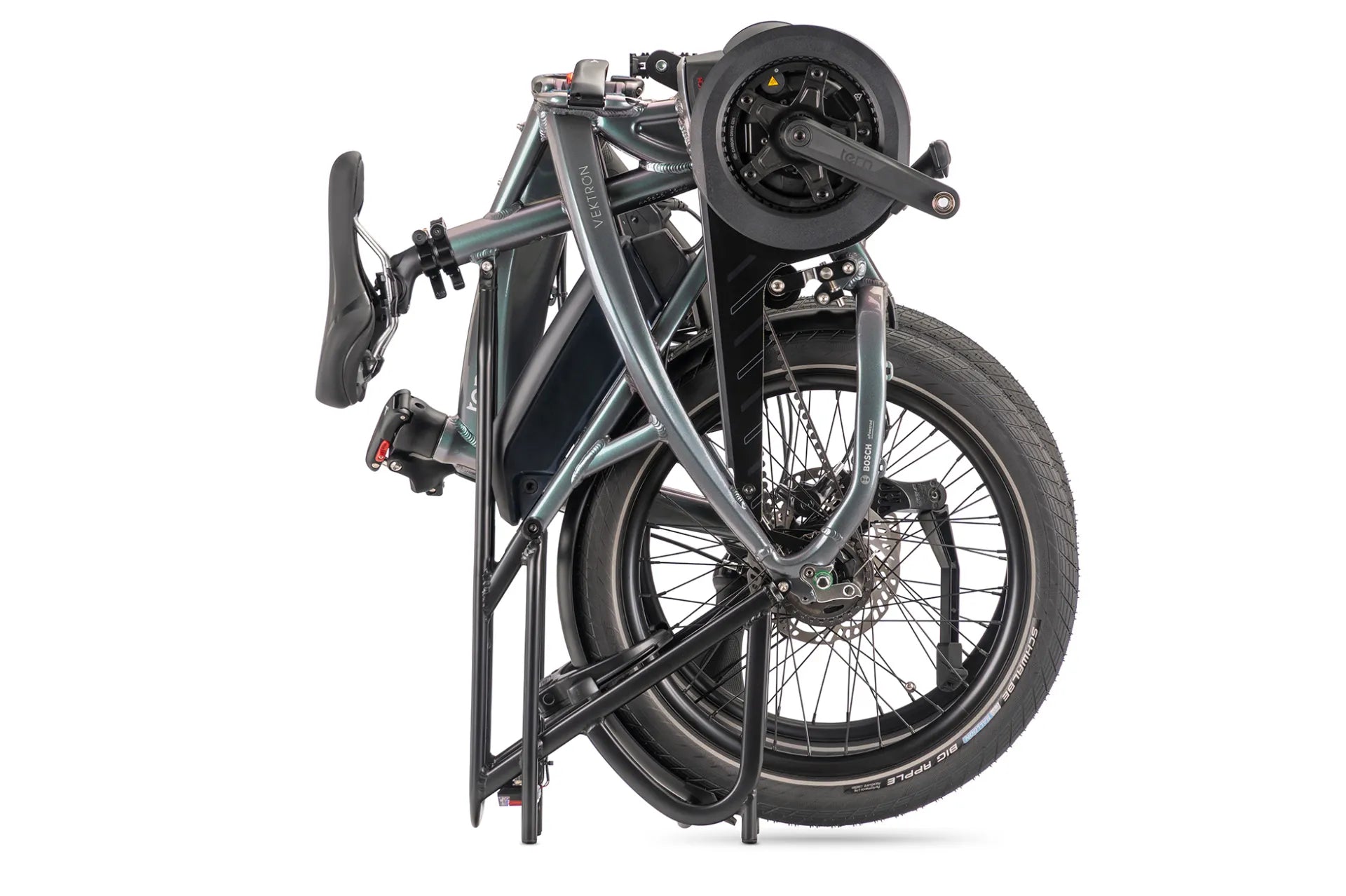

Folds down compact in 10 seconds to fit in cars, trains, and closets
Stands upright and rolls when folded—easy to move, easy to store
Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
Hydraulic disc brakes for all-weather stopping power
Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards

GENERAL INFO

Wheel Size:	20 inch wheels
Speeds:	1x5
Weight:	21.4 kg (47.2 lb)
Folding Time:	10 sec
Folding Size:	42 × 85 × 69 cm (16.5 × 33.5 × 27.2 in)
Frame Sizes:	One size
Gear Inches:	34" - 90" (2.75 - 7.22 m)
Distance: Seatpost to Handlebar:	Min: 620 mm (24.4") Max: 690 mm (27.2")
Distance: Saddle to Pedal:	Min: 670 mm (26.4") Max: 1100 mm (43.3")
Suggested Rider Height:	147 - 195 cm (4'10" - 6'5")
Max Rider Weight:	105 kg (231.5 lb)
Max Gross Vehicle Weight:	125 kg (275.6 lb)

FRAME

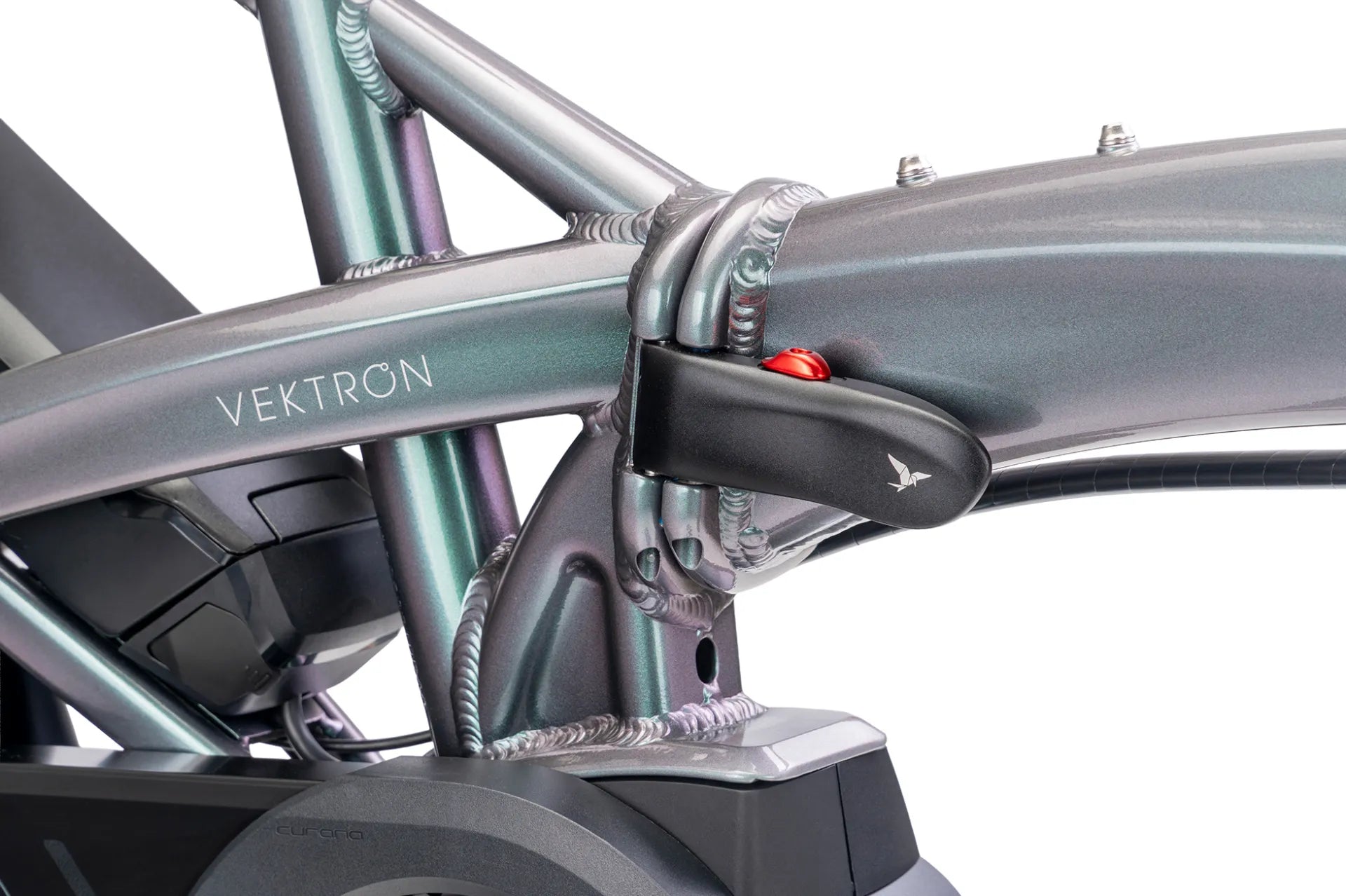

Frame:	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork:	Tern Tarsus, 6061-AL, hydroformed

COCKPIT

Handlepost:	Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
Stem:	Tern Andros, adjustable, forged construction, patented technology
Headset:	Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:	Tern Sweep, 6061-AL, Tern Andros adapted
Grip/Bars Tape:	Ergon
Saddle:	Tern Upright by Velo
Seatpost:	Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:	Tern Collar

BRAKES

WHEELS

Front Hub:	Disc, aluminum

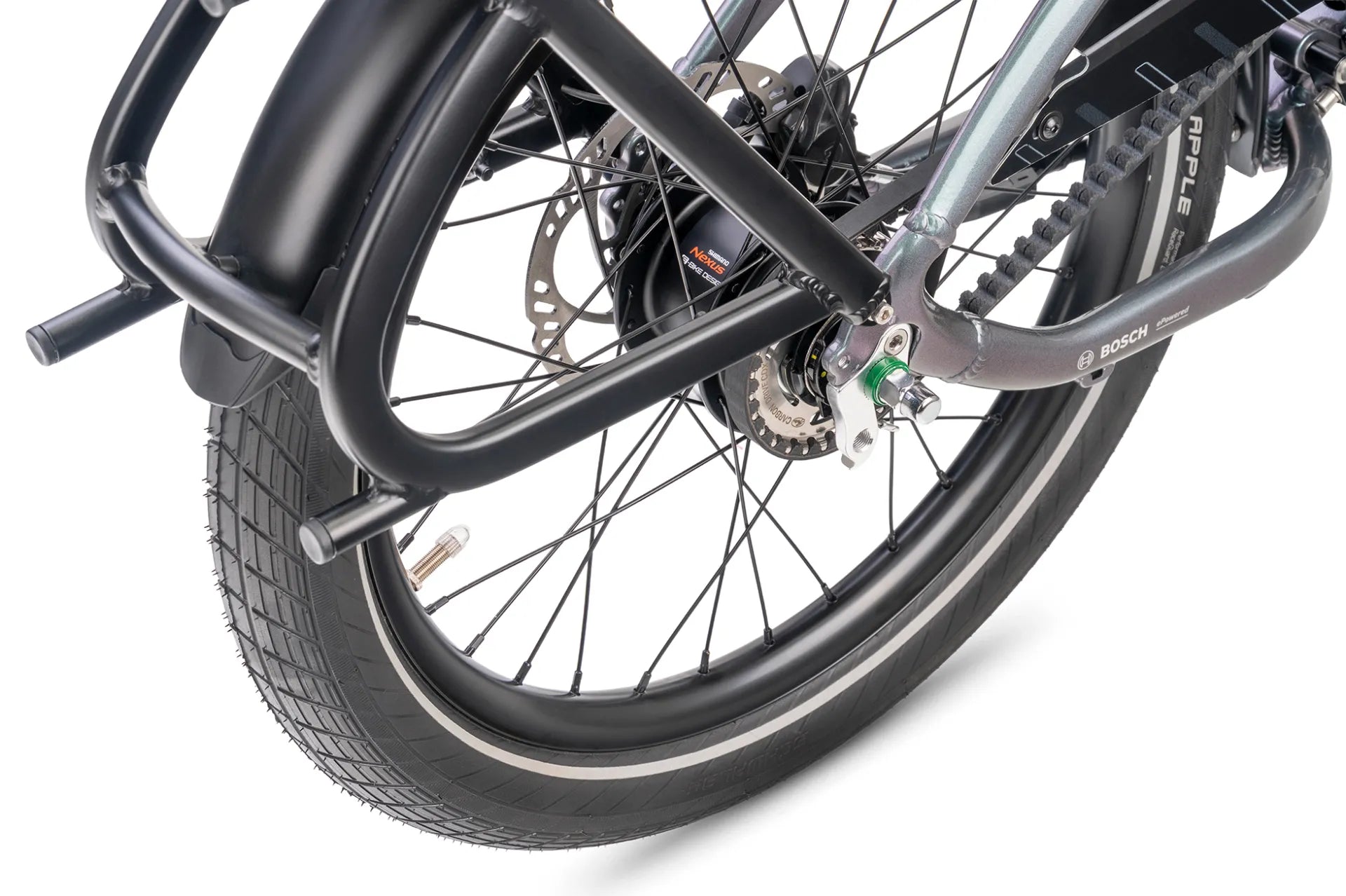

Rear Hub:	Shimano Nexus 5
Spokes and Nipples:	Stainless steel
Rims:	Kinetix Comp for disc
Tires:	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

TRANSMISSION

Shifter(s):	Shimano Nexus, 5 spd
Crankset:	Tern custom, Gates CDX CNC machined beltring
Cassette/Freewheel:	Gates CDX, precision CNC machined cog
Chain:	Gates Carbon Drive CDC belt
Pedals:	MKS EZY
Shifter Cable and Housing:	Shimano

E-SYSTEM

Motor:	Bosch Performance, max speed 20 mph
Battery:	Bosch Powerpack 400 Wh
Display:	Bosch Intuvia, 4 mode selectable, walk assist
Range:	400 Wh: 45-112 km (28-70 mi)
Charger:	100-240V, 2A

EXTRAS

Chainguard:	Tern Custom, full chain cover
Kickstand:	URSUS, rear mount
Clip System:	Magnetix 3.0
Luggage Socket:	Yes
Front Light:	Tern Valo Direct, 190 lumens
Rear Light:	Herrmans
Fenders:	SplashGuard, stainless hardware
Rack:	Atlas V Rack, integrated 8 point mounting, 27 kg capacity
Frame Lock:	ABUS, keyed-alike with Bosch battery
